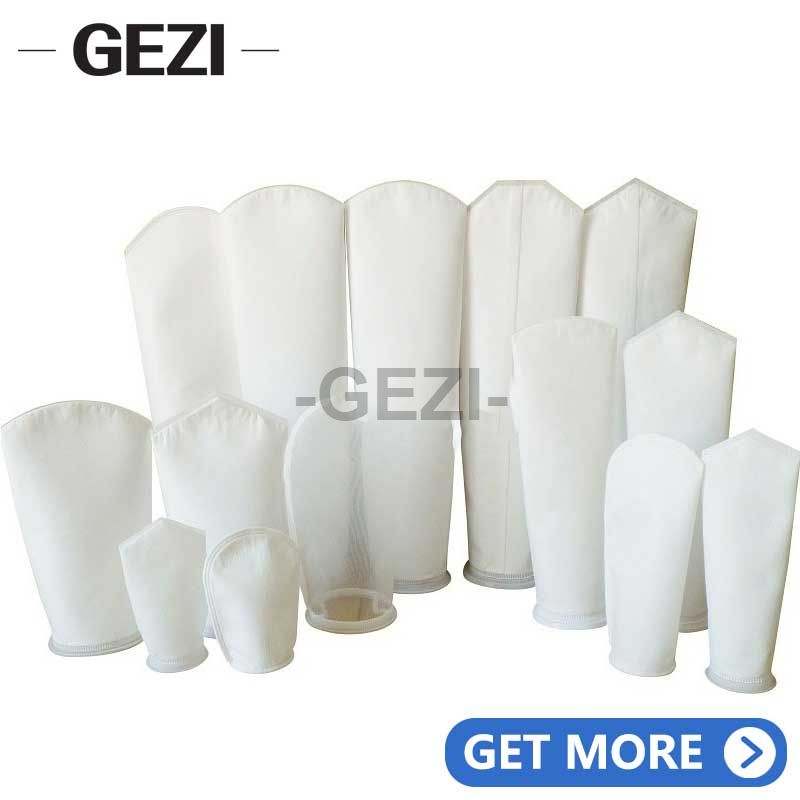

Specifications
| Size type | Ø×H (mm） | Flow(m³/h) | Filtration area (m²) | Volume (L) |
| #1 | φ180×430 | 20 | 0.24–0.25 | 8–8.1 |
| #2 | φ180×810 | 40 | 0.48–0.5 | 17–17.3 |
| #3 | φ105×230 | 6 | 0.08–0.09 | 1.3–1.4 |
| #4 | φ105×380 | 12 | 0.16 | 2.5–2.6 |
| #5 | φ150×560 | 18–20 | 0.24–0.3 | ~8 |
Accuracy range: 0.1µm – 500µm, optional conventional 1, 5, 10, 25, 50, 75, 100, 150, 200, 300µm, etc.
Filtration efficiency: nominal efficiency (single-stage filtration) is about 85%; absolute efficiency can reach ≥99.9%.
Advantages and Features
High dust capacity, low resistance: Optimized life and flux of deep filter structure.
Temperature tolerance higher than PP bag: suitable for hotter ambient liquids or near boiling systems.
Easy to install and maintain: light weight, quick replacement, washable or single-use replacement.
Food/pharmaceutical grade: optional food-grade materials, suitable for high and clean environment.
Application scenarios
Industrial fluid filtration: coatings, oils, resins, electronic chemical liquids, etc.
Food and beverage/pharmaceuticals: food-grade applications such as hot beverages, syrup, alcohol, and water.
Water treatment/RO system: Pre-coarse filtration protection ultrafiltration membrane system.
High temperature Fluid Process: for 100–150°C working fluids.
