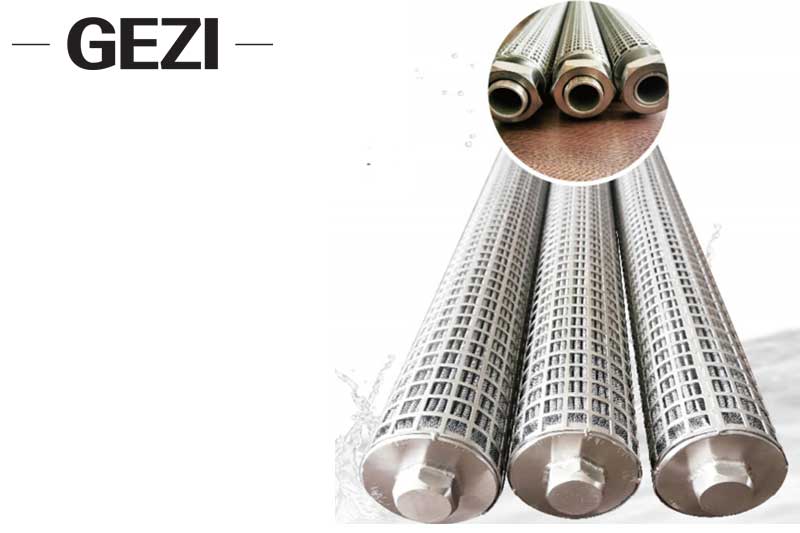

The stainless steel mesh pleated filter cartridge is a porous depth-type filter cartridge made of stainless steel fiber mesh, which is formed by pleating and sintered at high temperature. With pore sizes uniformly distributed in a trapezoidal pattern from coarse to fine, it features absolute filtration effect, high porosity, and strong dirt-holding capacity.
APPLICATION FIELD
The filter cartridges SS316 have a very wide range of applications. They are mainly used in the filtration and supporting of industrial water treatment (such as make-up water and condensed water) in industries including chemical engineering, petroleum, oilfield pipeline filtration and fueling equipment, power plants, pharmaceuticals, coal, metallurgy, environmental protection, printing, etc. They are also applied in industries like oil well, natural gas wells, water treatment industry filtration, metallurgical separation, coal washing and preparation, power plants, sand control, chemical engineering, chemical fibers, pharmaceuticals, papermaking, building materials, cement, ceramics, glass, salt production, food, and so on.
MAIN TECHNICAL PARAMETERS
Material：304/316L
Outer Diameter：50/60 (Customizable)
Length：150mm–1500mm (Customizable)
Filtration Precision：1–100μm
Connection (Interface)：M20 M30 222 226 (Customizable)
Operating Temperature：Maximum 450°C
Special sizes can be processed and customized
