The Ultimate Guide To Stainless Steel Pleated Filter Cartridges: Efficiency, Durability, And Industrial Applications

In the world of industrial filtration, choosing the right filter medium is critical for operational efficiency, product purity, and cost management. Among the various options available, the Stainless Steel Pleated Filter Cartridge stands out as a premier solution for demanding environments.

Whether you are dealing with high temperatures, corrosive chemicals, or high-pressure systems, stainless steel pleated filters offer a combination of longevity and performance that polymer-based filters simply cannot match.

What is a Stainless Steel Pleated Filter Cartridge?

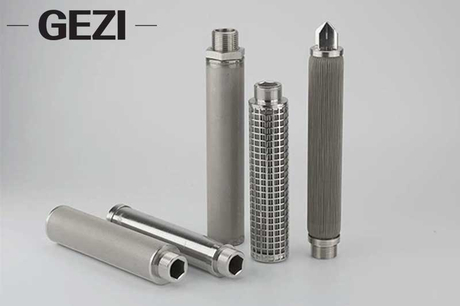

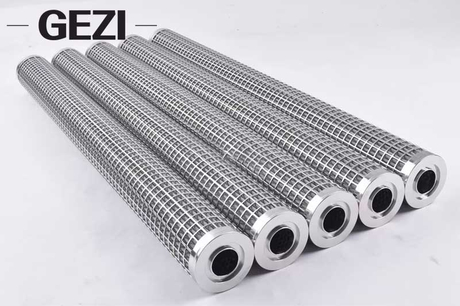

A stainless steel pleated filter cartridge is a high-performance filtration element constructed from layers of stainless steel wire cloth (usually 304 or 316L) or stainless steel fiber felt. The "pleated" design is its defining feature—by folding the filter media, the surface area is significantly increased, allowing for higher flow rates and a greater dirt-holding capacity.

Key Advantages of Pleated Stainless Steel Filters

1. Superior Surface Area

The pleated structure provides 3 to 10 times the surface area of a standard cylindrical filter. This results in:

Lower pressure drops.

Higher flow rates.

Longer service life before cleaning is required.

2. High Temperature and Pressure Resistance

Unlike plastic or fabric filters, stainless steel cartridges can withstand extreme temperatures (up to 500°C and beyond) and high differential pressures. This makes them indispensable in steam filtration and heavy industrial processes.

3. Exceptional Corrosion Resistance

Manufactured from 316L stainless steel, these cartridges offer excellent resistance to acids, alkalis, and organic solvents, ensuring no medium migration or chemical breakdown during the filtration process.

4. Washable and Reusable (Eco-Friendly)

One of the most significant ROI factors is that these filters are not "disposable." They can be cleaned using backwashing, ultrasonic cleaning, or chemical cleaning and reused multiple times, drastically reducing long-term replacement costs and environmental waste.

5. Precise Filtration Ratings

Available in absolute ratings from 1 micron to 200 microns, they provide consistent and reliable filtration for even the most sensitive applications.

Common Industrial Applications

Stainless steel pleated filter cartridges are versatile "workhorses" across various sectors:

Petrochemical Industry: Filtration of high-temperature oil, refining processes, and chemical catalysts.

Water Treatment: Pre-filtration for RO systems and industrial wastewater processing.

Food and Beverage: Removal of impurities in beer, wine, syrups, and beverage production.

Pharmaceuticals: Sterile air filtration and liquid chemical processing.

Hydraulic Systems: Protecting sensitive machinery from particulate contamination.

How to Choose the Right Filter for Your Site?

When sourcing a stainless steel pleated filter, consider the following technical specifications:

Material Grade: 304 is standard, but 316L is recommended for high-corrosion environments (e.g., salt water or acids).

Micron Rating: Do you need coarse filtration (50+ microns) or fine filtration (1-5 microns)?

End Cap Configuration: Ensure the connector (DOE, 222, 226, or Threaded) matches your existing filter housing.

Operating Conditions: Confirm the maximum temperature and pressure limits of the cartridge.

Conclusion

The Stainless Steel Pleated Filter Cartridge is an investment in reliability. By offering a reusable, high-capacity, and chemically resistant filtration solution, it helps industrial operators minimize downtime and maximize purity.

If your process involves harsh conditions where standard filters fail, it’s time to switch to the durability of pleated stainless steel.
