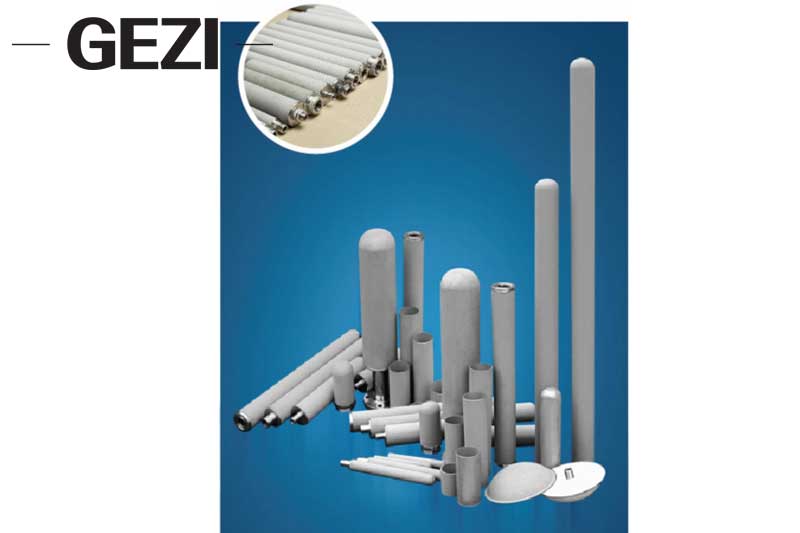

Titanium powder sintered filter cartridges (available in tubular and plate types) are manufactured using industrial high-purity titanium powder (99.4%) as the raw material, undergoing processes including sieving, cold isostatic pressing (CIP) for shaping, followed by high-temperature sintering under vacuum conditions. With their high-tech material composition and special forming process, titanium powder filter cartridges exhibit unique and excellent performance. Made from irregular powder of high-purity titanium or titanium alloy, these filter cartridges are mainly used for separation and filtration in industries such as petrochemicals, liquid pharmaceutical manufacturing, and water treatment.
CHARACTERISTICS
No particle shedding and no contamination to liquid medicines, complying with food hygiene requirements and pharmaceutical GMP standards.
High temperature resistance (300°C in wet state); generally, it can be used normally below 280°C.
Low pressure difference, small floor area, and large flow rate; the maximum flow rate can be achieved at 0.2 MPa.
Good mechanical properties, applicable for both pressure filtration and suction filtration, with simple operation.
High mechanical strength, high precision, and excellent forming process; the integral non-welded length can reach 1000 mm.
Good chemical stability: acid-resistant and alkali-resistant, usable within a wide pH range, with strong oxidation resistance, suitable for various environments.
Uniform structure, narrow pore size distribution, and high separation efficiency.
High porosity, low filtration resistance, and high permeability efficiency.
Strong antimicrobial ability: no interaction with microorganisms, making it applicable in the fields of bioengineering and medicine.
Renewable, easy to clean, and long service life (generally several times that of ordinary membrane filter cartridges); it can be used normally for more than two years.
MAIN TECHNICAL PARAMETERS
Filtration Precision: 0.2-100 μmLength: 5 inches, 10 inches (10"), 12 inches (12"), 20 inches (20"), 30 inches (30"), 40 inches (40"), etc.
Diameter: 30 mm, 50 mm, 60 mm, 70 mm, etc.
Connection Type: Flat-mouth type, socket type (Model 222, Model 226), threaded type (M20/M30/M42/M48, special customization available)
APPLICATION FIELD
Decarbonization filtration in the concentrated preparation process and security filtration before terminal filtration in the dilute preparation process for large-volume injections, small injections, eye drops, and oral liquids in the pharmaceutical industry;
Impurity removal filtration, material decarbonization filtration, and precision filtration during production in raw material factories;
Security filtration for ultrafiltration, RO, and EDI systems, post-ozone sterilization filtration, and ozone aeration in the water treatment industry;Clarification filtration for beverages, Baijiu (Chinese liquor), beer, vegetable oil, mineral water, soy sauce, and vinegar in the food and beverage industry;
Decarbonization filtration and precision filtration of liquid products, liquid raw materials, and pharmaceutical intermediates, filtration and recovery of ultrafine crystals and catalysts;
precision filtration after resin adsorption, impurity removal filtration of system heat-conducting oil and materials; and purification of catalytic gases in the chemical industry;Oilfield produced water filtration;
security filtration before reverse osmosis in the seawater desalination field;
high-temperature decarbonization and de-clay filtration in the fuel industry;
Filtration of steam, compressed air, and catalysts in terms of gas purification.
