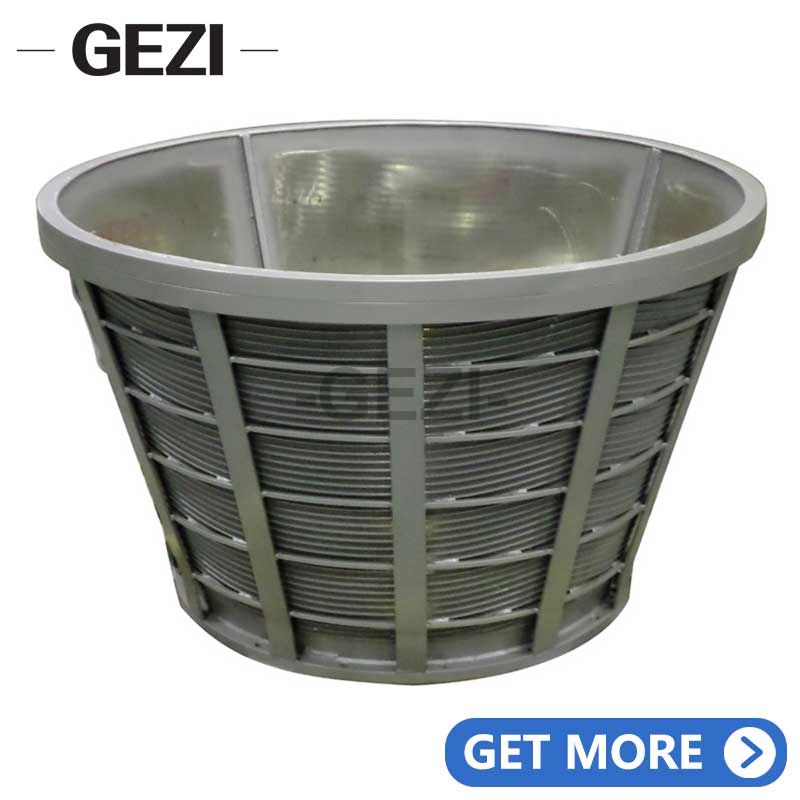

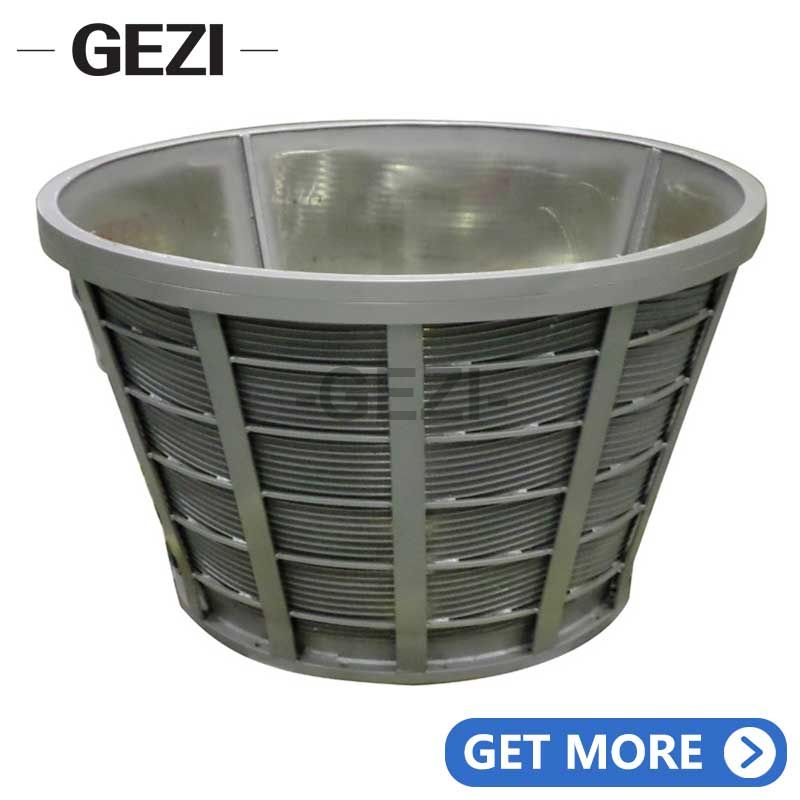

Key Features
✔ V-Wire Design – Continuous slot profile for anti-clogging and self-cleaning performance
✔ High Structural Integrity – Reinforced support rings and rugged frame construction
✔ Corrosion Resistance – Stainless steel (304/316L/2205), duplex, and custom alloys
✔ Custom Engineering – Various shapes (cylindrical, conical, rectangular) and sizes
✔ Optimized Flow – High open area for maximum throughput with minimal pressure drop
Applications
Chemical Processing – Catalyst recovery, solvent filtration, polymer separation
Pharmaceuticals – Active ingredient separation, crystallization, purification
Food & Beverage – Starch processing, sugar refining, edible oil filtration
Water Treatment – Intake screening, effluent filtration, sludge dewatering
Mining & Minerals – Tailings processing, leachate recovery, concentrate filtration
Advantages
✅ Excellent Durability – Resists abrasion, corrosion, and thermal cycling
✅ Easy Maintenance – Clean-in-place capability, quick disassembly design
✅ High Capacity – Large filtration area with uniform flow distribution
✅ Versatile Mounting – Compatible with most vessel configurations
Specifications
Slot Sizes: 0.02mm – 5mm (standard range, custom sizes available)
Diameter Range: 100mm – 3000mm (custom sizes upon request)
Pressure Rating: Up to 25 bar (design dependent)
Temperature Range: -40°C to +550°C (material dependent) Connection
Types: Flanged, clamped, threaded, or custom fittings
