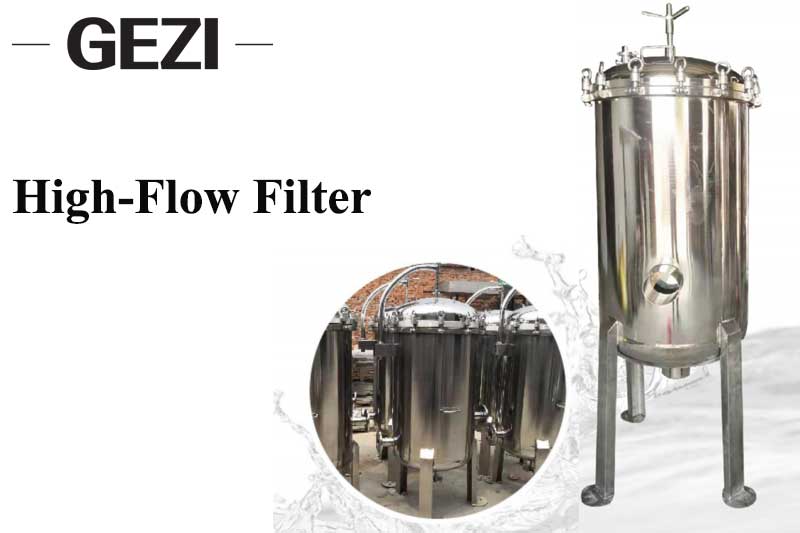

A high-flow filter is a device installed in a pipeline to remove various solid particle contaminants from fluids. Its purpose is to extend the service life of components and improve the operational stability of the system.The most prominent feature of this series of filters is its built-in self-sealing device. When replacing the filter cartridge, it only needs to be rotated 90° while loosening the flange to meet the self-sealing requirement of preventing fluid leakage, making cartridge replacement convenient.
CHARACTERISTICS
The high-flow filter housing is developed and designed for large-diameter and high-flow-rate pipelines.It uses high-flow filter cartridges, with an opening rate of over 50% and a straight-through structure, which combine to achieve maximum flow rate and minimum pressure difference, significantly reducing the overall size and weight.When the filter is out of service, only one person is required for cleaning and maintenance.
MAIN TECHNICAL PARAMETERS
Core Component: High-Flow Folded Filter Cartridge
Maximum Operating Pressure: 1.0 MPa
Maximum Operating Temperature: 45 °C
Filter Housing Material: 304/316L Stainless Steel
Eyebolt: 304 Stainless Steel
Feet / Support Legs: 304 Stainless Steel
Sealing Rings & Gaskets: EPDM (Ethylene Propylene Diene Monomer) Rubber, PTFE (Polytetrafluoroethylene), Fluororubber, Silicone Rubber
Surface Treatment Type: Mechanical Polishing, Electrolytic Polishing, Sandblasting
Housing Connection: Eyebolt Flange
