Introduction
Choosing the appropriate filtration equipment is essential for achieving consistent product quality, maintaining hygienic production, and protecting processing equipment in food and beverage manufacturing. Different liquids require different filtration technologies based on viscosity, particle size, operating temperature, and product quality requirements.
This guide introduces recommended filtration solutions for common food-processing liquids and compares the advantages and limitations of widely used filter materials.
Recommended Filtration Solutions for Different Food Processing Liquids
Selecting the correct filter type and micron rating helps improve filtration efficiency while reducing maintenance costs.
Liquid Type | Recommended Filter | Suggested Micron Rating (μm) | Primary Purpose |
Process Water / Purified Water | PP Melt Blown Filter Cartridge or PES Membrane Filter Cartridge | 0.22–5.0 | Remove suspended particles and microorganisms |
Beer, Spirits & Wine | PES Membrane Filter Cartridge or Bag Filter | 0.45–1.2 | Improve clarity, enhance cold stability, and support microbial reduction |
Fruit Juice & Beverages | PP Pleated Filter Cartridge or Filter Board | 1.0–20.0 | Remove pulp, fibers, and suspended solids while controlling turbidity |
Edible Oil | Stainless Steel Mesh Filter or Bag Filter | 25–100 | Remove impurities and assist with wax removal during processing |
Syrup & Honey | High Flow Pleated Filter Cartridge or Stainless Steel Filter Element | 5.0–50 | Remove contaminants from high-viscosity liquids while maintaining stable flow |
High-Temperature Steam | Sintered Stainless Steel Filter or Titanium Filter Element | 1.0–5.0 | Purify clean steam used for sterilization and sanitary processing |
Comparison of Common Filter Cartridge Materials
Different filter media provide unique performance characteristics. Understanding their strengths and limitations helps manufacturers select the most suitable solution for specific production requirements.
A. Polypropylene (PP) Filter Cartridge
Advantages
Excellent chemical compatibility with many food-processing liquids
Cost-effective filtration solution
High flow capacity with low pressure loss
Ideal for coarse filtration and pretreatment applications
Widely used in water treatment and beverage production
Limitations
Generally recommended for operating temperatures below approximately 80°C
Most standard PP cartridges provide nominal filtration rather than absolute-rated retention
Not suitable for high-temperature sterilizing applications
B. Polyethersulfone (PES) Membrane Filter Cartridge
Advantages
Naturally hydrophilic membrane for efficient liquid filtration
High flow rate and low extractables
Absolute-rated filtration performance
Effective for reducing microorganisms before aseptic filling
Commonly used in bottled water, beer, wine, and beverage production
Limitations
Higher initial investment compared with conventional depth filters
Requires effective prefiltration to minimize premature membrane fouling
More sensitive to heavy particulate loading

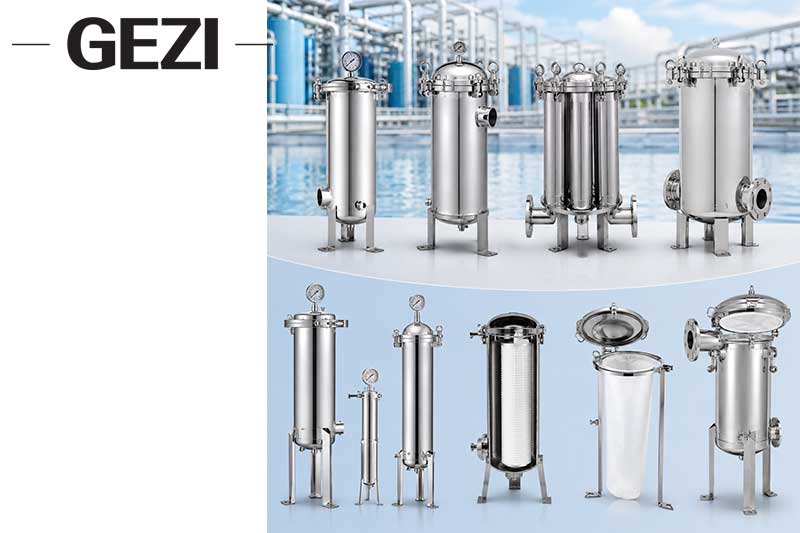

C. Stainless Steel Filter Elements (304 / 316L)
Advantages
Excellent resistance to high temperatures and pressure
Durable construction for demanding industrial environments
Can be cleaned and reused multiple times
Suitable for CIP (Clean-in-Place) and many sanitary processing systems
Long service life with proper maintenance
Limitations
Higher initial equipment cost
Fine filtration capability is generally lower than membrane filters
Typically not suitable for ultrafine filtration below approximately 0.1 μm
D. PTFE Filter Cartridge
Advantages
Outstanding chemical resistance against aggressive acids, alkalis, and solvents
Naturally hydrophobic membrane structure
Well suited for gas, air, and steam filtration
Excellent performance in chemically demanding applications
Limitations
Higher purchase cost than many alternative filter materials
Liquid filtration usually requires membrane pre-wetting before operation
Often selected only when exceptional chemical compatibility is required
Choosing the Right Filter for Your Process
When selecting filtration equipment, manufacturers should consider multiple process parameters, including:
Product type
Required filtration efficiency
Flow rate
Operating temperature
Chemical compatibility
Liquid viscosity
Cleaning and maintenance requirements
Regulatory compliance
Operating cost
Expected service life
A properly designed filtration system can improve product consistency, reduce downtime, protect downstream equipment, and support efficient food production.
Conclusion
There is no single filtration solution suitable for every food-processing application. Process water, beverages, edible oils, syrups, and clean steam all require different filter materials and micron ratings to achieve the desired results.
By understanding the performance characteristics of PP, PES, stainless steel, and PTFE filtration media, manufacturers can select equipment that balances filtration performance, operating efficiency, product quality, and long-term operating costs.
