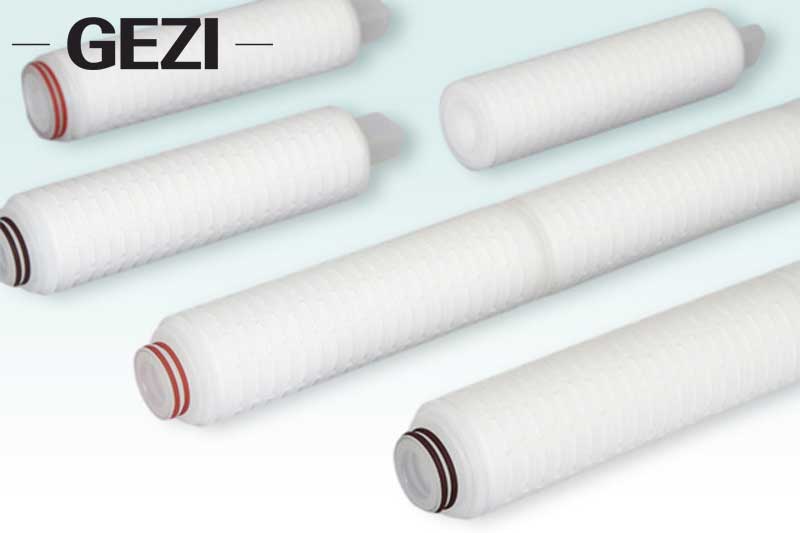

High-Flow Pleated Filter Cartridge Application Areas Advantages

The High-Flow Filter Cartridge series uses deep-fine polypropylene or glass fiber membranes as filter media. lntegrating innovative technology and advanced design, it adopts a gradient pore size structure and a one-way opening. The inside-to-outside flow direction ensures that all impurity particles are trapped inside the filter cartridge, while the outside-to-inside liquid flow direction ensures that all contaminant particles are intercepted outside the filter element resulting in high filtration effciency and stable, reliable performance Compared with traditional filtration units, it features a large diameter of6.3 and 6.5 inches (160mm and 165mm), allowing a single cartridge filter to achieve a water flow rate ofup to 80 thr. This significantly reduces the diameter of the filter housing. The ultra-high-flow design minimizes the number of filter cartridges and filters required for applications with the same fow rate, thereby reducing the footprint of the entire filtration system unit and greatly lowering equipment operation investment and labor costs.

Application Areas

Water Treatment：Pretreatment filtration for reverse osmosis (RO) systems, pretreatment for seawater desalination.

Electronic lndustry: Prefiltration for ultrapure water in the semiconductor and electronic industries,.

Food Industry: Filtration of firuit juices, beer, beverages, mineral water, dairy products, etc.

Petrochemical Industry: Filtration for reclaimed water reuse, filtration for oilfield reinjection water.

Power Plants & Steel Mills: Security filtration for condensed water, cooling water, circulating water, and coal chemical processes.

Chemical Industry: Filtration of acids, alkaline solutions, and organic solvents.

High-flow Pleated Filter Cartridge Advantages

The cartridge filter features a large effective filtration area, low pressure drop, and high flow rate. It adopt deep-fine membrane materials and a scientifically designed multi-laver gradient pore size filtration structure, endowing the cartridge with the characteristic of high dirt-.holding capacity. This extends the service life ofthe filter cartridge and reduces labor and operating costs. The al-Pp (polypropylene) matemial gives the filter cartridge good chemical compatibility, making it suitable for filtering a variety of liquds. The high-flow filter cartridgecan ensure stable filtration performance even under high-flow conditions.
