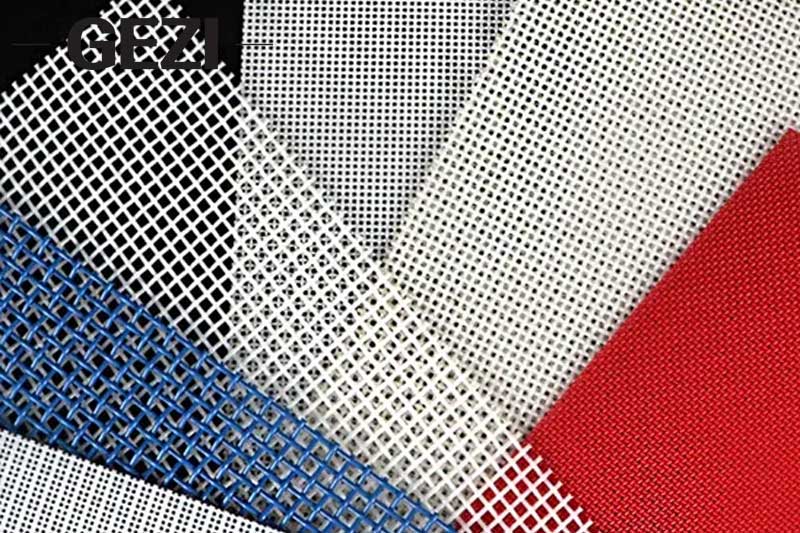

Introduction To Polyester Dryer Mesh

Polyester Mesh Belt is one of the most important application materials in the drying and filtration industries. Polyester Spiral Mesh Beltfeatures high strength, small deformation, corrosion resistance, good wear resistance, convenient installation and use, no interface marks, and a long service life. Therefore, it is widely used in the papermaking industry, and is an indispensable consumable dewatering equipment in the papermaking industry. Polyester Dryer Mesh is currently also used in industries such as mineral processing, flour milling, sewage treatment, sugar making, pharmaceuticals, ceramics, food, printing, and coal washing.

Polyester Spiral Mesh Major parameter:

1: Warp Diameter： 0.15 - 0.28mm；

2: Weft Diameter： 0.17 - 1.0mm；

3: Warp Density: 2- 71root/cm；

4: Weft Density: 4.3 - 66root/cm；

5: Mesh Surface Tensile Strength: ≥500-2100N/cm；

6: Joint tensile strength: ≥350-1400N/cm;

7: Mesh Thickness: 0.39-1.95mm;

8: Mesh Weight: 0.55-1.1kg/m²；

9: Air Permeability: 4550- 20000m³/m²/h；

10: Elongation at fixed force (tensile rate under a tension of 50N/cm): ≤0.6%- 0.68%.

Polyester mesh is classified by application into: polyester formed mesh, polyester dry mesh, polyester filter press mesh, sludge dewatering mesh, slurry washing mesh, desulfurization mesh, anti-static mesh, alkali-resistant polyester mesh, etc.
