Parameter Selection of Bag Filter Housing

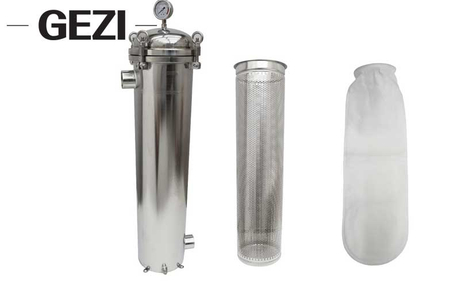

The parameter selection of bag filter housing involves multiple considerations.         The structure of a bag filter housing is composed of three main components: the filter cylinder, the support basket, and the filter bag.  Impurities in the fluid are captured by the filter bags, which can either be replaced or cleaned for reuse.         The support basket is fabricated from high-strength steel plates with perforations, effectively preventing the migration of filter bag fibers and ensuring high filtration efficiency.

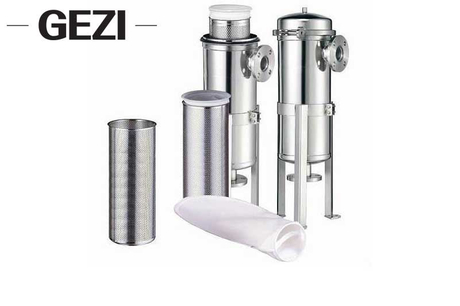

Bag filter housing are available in various configurations, such as single-bag filter housing and multi-bag filter housing types, and the selection should be based on the required flow capacity.

Additionally, the styles of bag filter housing can be categorized into clamp type, standard flange type, and quick-install lifting ring type, with the appropriate choice determined by the operating pressure.

The materials used in bag filter housing construction typically include 304 or 316L stainless steel, with the selection depending on the specific application environment.

Filter bags are available in different filtration precision levels, including 1 µm, 5 µm, 10 µm, 25 µm, 50 µm, 100 µm, 150 µm, and 200 µm, allowing for selection based on the water quality requirements.

Optional accessories such as outriggers and rocker arms can be added upon customer request.
