Cost-Effective Depth Filtration for Critical Fluids

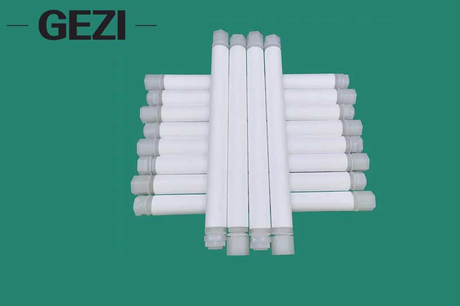

PE Sintered Filter Cartridge Core Technology
Manufactured from high-density polyethylene (HDPE/UHMWPE) through precision sintering, this monolithic filter delivers graded pore density (1-100μm) with exceptional dirt-holding capacity. ISO 14644-1 Class 7 cleanroom production ensures pharmaceutical-grade cleanliness.
PE Sintered Filter Cartridge Competitive Advantages：
PE Sintered Filter Cartridge Performance Superiority
High Flow/Low Pressure Drop : 40% higher flux than equivalent PP filter element (per ASTM D6908)
Absolute Rating : βₓ≥500 at rated micron (ISO 16889 validated)
Max Operating Temp : 80°C (176°F) continuous service
TCO Reduction
Chemical Resistance : Withstands acids/alkalis (pH 1-14), solvents, oxidizing agents
Reusable : >30 CIP cycles (0.5% NaOH/70°C)
No Support Cage : 50% lighter than stainless steel alternatives
Safety Compliance
Certifications : FDA 21 CFR 177.1520, EU 10/2011, RoHS, REACH
Non-leachable : <0.1 μg/cm² extractables (USP <661>)
Global Application Matrix
INDUSTRY | CRITICAL USE CASES | KEY BENEFIT |
Water Treatment | RO Pre-filtration, DI Polishing | Chlorine resistance, Low TOC leaching |
Electroplating | Acid bath filtration, Catalyst recovery | HF/HNO₃ resistance, Metal ion removal |
Food & Beverage | Syrup clarification, CIP return filter | Non-adsorptive, Zero taste impact |
Chemicals | Aggressive solvent processing | Full pH range compatibility |
PE Sintered Filter Cartridge Technical Specifications
PARAMETER | SPECIFICATION | STANDARD |
Pore Size Range | 1μm, 5μm, 10μm, 20μm, 50μm, 100μm | ±15% tolerance (ASTM F316) |
Max Delta P | 3.5 bar (50 psi) @ 25°C | ISO 2941 |
End Connections | 222/226 DIN, NPT (1/2"-4"), Tri-clamp | DIN 11851/ASME B16.11 |
Sterilization | Steam autoclave (121°C/30min) | ASTM E3106 |
Why International Buyers Trust Us
Replaced our stainless filter elements in phosphoric acid filtration:
60% cost reduction
5x longer service life
Zero corrosion after 12 months"
Chemical Processor, Germany
Procurement Advisory
Best For :
Pre-filtration of viscous fluids (>300 cP)
Aggressive chemical processes (pH 0-14)
Low-budget projects requiring FDA compliance
Avoid :
Aromatic hydrocarbons (toluene/xylene)
Chlorinated solvents above 60°C
Applications requiring >80°C continuous heat
