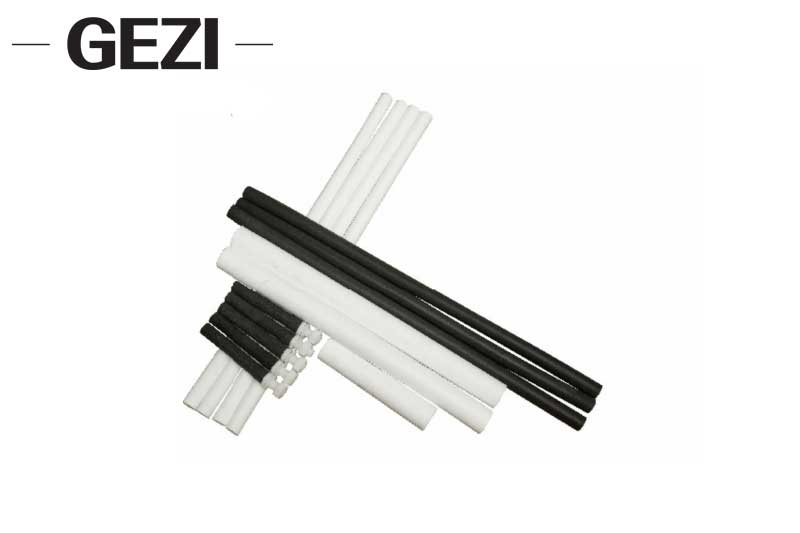

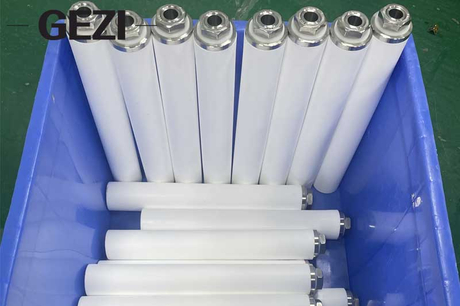

PE/PA Sintered Filter Cartridge Application Technical Parameters

The PE/PA sintered filter cartridge adopts cross-flow solid-liquid separation. It is used for filtering solid particle impurities in liquids, clarifying filtration of industrial wastewater, filtration of drinking water, and filtering dust and oil mist in gases. The PE/PA sintered filter cartridge features uniform pore size and high precision—it can filter particles as small as 0.2 μm, with a particle impurity filtration efficiency of over 99%. The microporous filter tube is resistant to acids, alkalis, salts, most organic solvents, and highly corrosive chemicals. It is non-toxic and odorless, making it extremely suitable for applications in pharmaceutical and sanitary fields, as well as in the production of food, beverages, and wine. The microporous filter tube is easy to use, with a slow increase in resistance, and can be used for a long time through regeneration. It has high mechanical strength, is not easily damaged, and has a long service life. For the regeneration of the microfilter tube, a "gas-water mixed fluid" can be used for rapid backflushing regeneration: the particles blocked on the capillary walls of the microfilter tube are blown off by backflushing, and the tube can be put into operation after forward and reverse flushing. If the service cycle is long and the microfilter tube is severely contaminated and cannot be cleaned thoroughly by backflushing, it can be soaked in a 20% dilute acid solution for 24 hours, followed by backflushing and flushing, after which it can be used normally.

CHARACTERISTICS

The PE/PA sintered cartridge filter has a uniform pore size distribution and is resistant to strong acids, strong alkalis, and most organic solvents; It has excellent mechanical properties and high pressure-bearing capacity; The filter cartridge has the same pore size from the inner to the outer layer, with a smooth surface, making it easy to remove residues through backwashing (or backblowing); It has good regeneration performance and can be reused for a long time.

MAIN TECHNICAL PARAMETERS

Operating Temperature: PE sintered filter cartridge ＜ 80°C; PA sintered filter cartridge ＜ 120°C

Operating Pressure: 0.1 MPa – 0.6 MPa

Filtration Precision: 0.45 μm – 100 μm

Filter Cartridge Specification: Diameter 38 mm (other diameters can be customized)Filter Cartridge Length: 200 – 1500 mm

Connection Type: Threaded connection, flat-pressure type, plug-in type, etc.

APPLICATION FIELD

Pharmaceutical Industry: Decarbonization filtration of medical intermediates for large-volume injections and water-injection formulations; filtration of fermentation broths, oral liquids, biopharmaceuticals, and traditional Chinese medicines;

Chemical Industry: Filtration and washing of aluminum hydroxide, aluminum oxide, palladium catalysts, phosphors, zinc carbonate, sodium carbonate solutions, barium sulfate, zinc sulfide, cadmium sulfide, etc.;

Filtration of beverages such as beer, medicinal liquor, Baijiu (Chinese liquor), and wine;

Filtration of electroplating solutions; precision filtration of internal combustion engine cleaning fluids; filtration of oilfield well-flushing water;

Electronics Industry: Precision filtration for ultrapure water preparation systems;

Bulk Pharmaceutical Industry: Filtration and decarbonization.
