A catalogue gives you a range. A drawing gives you a part. The gap between the two is where most sourcing delays begin — and it is almost always a missing tolerance or an undecided end structure, not a missing supplier.
Most buyers start with the catalogue, and that is the right place to start. GEZI's brochure lists more than twenty muffler families — V-A, V-B, BSL-A, BSL-B and the stainless and plastic series alongside them — all available in BSPP, BSPT or NPT threads and spanning M5* to 2". Behind the mufflers sit four material families: sintered bronze, sintered stainless steel, sintered plastic and activated carbon, formed into tubes, cups, cones, discs, rings and plates.
That is a wide range. It is also the easy half of the question. What a catalogue cannot tell you is whether a part will fit your housing.

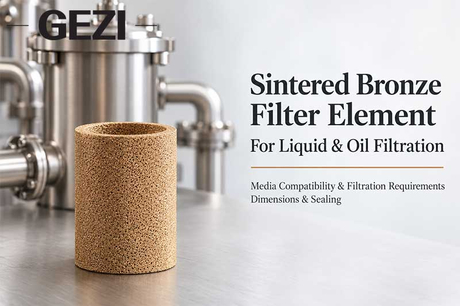

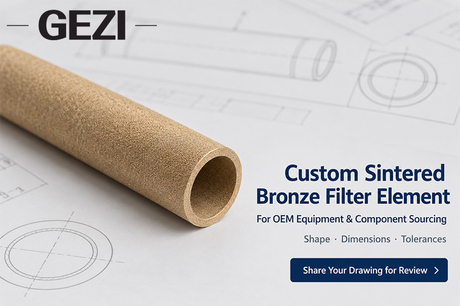

A custom sintered bronze filter element is not a catalogue part, and it is rarely bought on price. It is bought against a drawing — and the drawing is where the delay usually starts.
Shape and size are almost always stated. Tolerance and end structure, the two features that decide whether the part fits and seals, are often left to be inferred. The reason is practical: shape and size are visible on the assembly, while tolerance and end structure live in the interface between the element and someone else's housing design.
A sintered bronze filter element sits inside an assembly designed by someone else. Its outside diameter has to enter a housing, its end structure has to seat against a seal or a shoulder, and its wall has to survive the flow it was specified for. Three of those four requirements are dimensional.
A drawing that gives a nominal size without a tolerance does not remove the decision. It transfers the decision to the supplier, who then has to guess.
| Parameter | What it covers | Why it decides the outcome |
|---|---|---|
| Shape | Plain tube, flanged tube, disc or stepped body | Decides how the material is pressed and how evenly wall thickness is distributed |
| Size | Diameter, length and wall | The numbers the housing is built around — they must carry a tolerance band, not nominal values |
| Tolerance | Permitted deviation on each critical dimension | The parameter buyers most often leave out, and the one that decides assemble-or-rework |
| End structure | Open, closed, flanged, threaded, or seated into a specific housing | Usually the last item finalized on a drawing, and the first to cause a fit failure |
Sample confirmation is not a fifth parameter. It is how the first four get verified before volume production.
These four do not move independently, which is why a drawing review is worth more than a fast quotation.
A thin wall is harder to hold to a tight tolerance than a thick one, because there is less material to resist distortion during pressing and sintering.
An end structure that needs a groove or a step takes sealing land away from the same face that has to seal. The two features have to be decided together, not sequentially.
A longer element multiplies every deviation along its length. A tolerance that is comfortable at one length may not be achievable at another.
Change the housing material and the fit that was acceptable changes again. The same drawing can behave differently in aluminium, steel or engineering plastic.
This is the reason a quote returned in a day against an incomplete drawing is not a fast quote. It is a price for a part that does not yet exist.

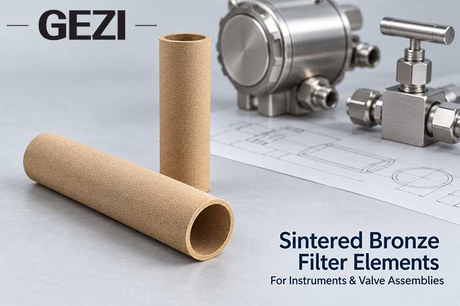

A sintered bronze filter sample settles what a specification cannot. It shows three things:
whether the part seats in the actual housing;
whether the end structure engages the way the drawing intended;
whether the tolerance band is realistic for the process that will make it.
Buyers who skip this step tend to find the same three problems at incoming inspection instead — when the tooling is already committed, the schedule has no slack, and every fix costs a production cycle rather than a sample. That is the point at which a drawing becomes a filter element.
Six items turn a sketch into a quotable part:
Shape, plus a dimensioned sketch or a model.
Size: diameter, length and wall, with tolerances on the features that mate.
Which dimensions are critical, and which are reference only.
End structure: how the element seats, seals or connects.
Quantity, and whether a first article is required.
The operating conditions the element has to survive.
Send the drawing for review before asking for a quotation. The reply either comes back with the part fully specified, or with the two or three questions that were missing from the drawing — and the second outcome is usually the cheaper one.
The catalogue tells you what is possible. The drawing tells the supplier what to make. Buyers who treat the second as an afterthought pay for it later, in rework, in delayed schedules, or in a second tooling cycle.
If you are specifying a custom sintered bronze filter element, start with the four parameters — shape, size, tolerance and end structure — and confirm them on a sample before committing to volume.
Custom Bronze Filter FAQ
What has to be on the drawing before a quotation is meaningful?
At minimum: outer shape, diameter, length, wall thickness, a tolerance band on every mating dimension, and the end structure. Mark which dimensions are critical and which are reference. A drawing with nominal sizes only cannot be quoted accurately, because the supplier has to assume the tolerance rather than build to it.
Why does the end structure matter as much as the diameter?
Because the diameter gets the element into the housing, and the end structure keeps it sealed once it is there. An open, closed, flanged or threaded termination changes the sealing face, the installation direction and the load path. It is also the feature most often left undecided until late, which is when it becomes a redesign.
Is a sample necessary if the drawing is complete?
It is the cheapest way to confirm that a complete drawing is also a correct one. A first article proves the fit in the real housing, the engagement of the end structure, and whether the tolerance band is achievable. Skipping it moves the same discovery to incoming inspection, after tooling and schedule are committed.
Can a tight tolerance always be met?
Not in isolation. Achievable tolerance depends on wall thickness, part length and end structure together, since a thin or long section distorts more during pressing and sintering. The practical approach is to identify the two or three dimensions that genuinely control fit, hold those tightly, and leave the rest at a workable band.
