In most water treatment trains, the string wound filter cartridge is the last component specified and the first one blamed. That order is backwards — the pre-filter is what determines how long everything downstream survives.
Walk through a typical project sequence. The membrane is selected against flux and rejection targets. The ion exchange bed is sized against capacity and regeneration cycle. The heat exchanger is chosen for duty and fouling margin. Then, near the end of the schedule, someone fills in the pre-filter: a micron figure carried over from the previous project, ordered by whoever handles consumables rather than by whoever designed the train.
It works — until the raw water changes. Then the failure appears downstream, on the membrane, the resin bed or the exchanger the pre-filter existed to protect.
A consumable purchased, a component specified
The root of the problem is a category error. A pre-filter is bought as a consumable but specified as a component. Procurement sees a low-cost item with a short replacement cycle and treats it accordingly. The system, however, sees a component whose retention behaviour sets the solids load on everything behind it.
That mismatch produces two predictable outcomes: a rating chosen by habit, and a construction chosen by price. Neither is a specification.
What depth construction actually buys

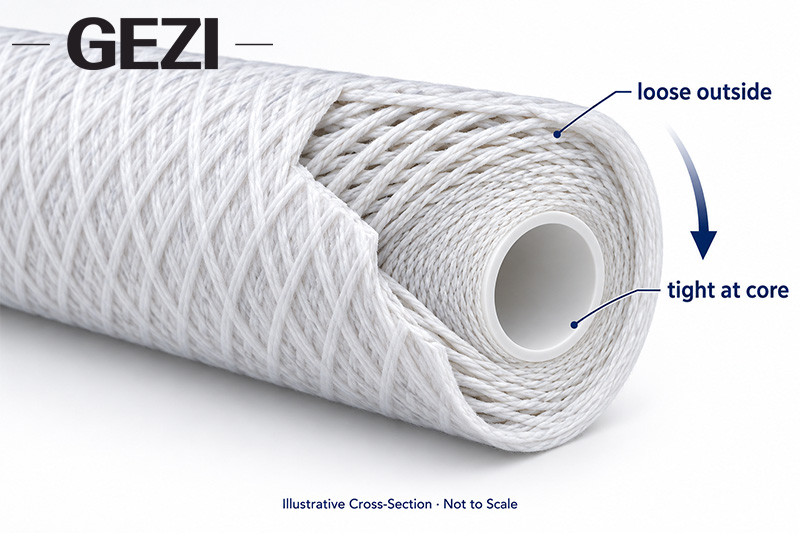

A wound cartridge is a depth filter. Yarn is wound over a perforated core, so the fibre matrix runs from open on the outside to tight at the core. Particles are trapped through the wall rather than screened on a flat face.
For the same nominal rating, that construction carries more solids before blinding than a surface element. In a raw water duty with a real particle load, that difference is the whole point: the element keeps working through a loading cycle instead of announcing a blocked surface within days.
Industry data puts industrial cartridge ratings across roughly 0.1–100 μm, and lists yarn-wound among the depth constructions (industry filtration report, pp. 161–170). Raw and process water pre-filtration sits at the coarse end of that range — which is precisely where the commercial language around ratings becomes least precise.
The micron number is not the specification
The specification error is rarely the micron number itself. It is that the number arrives without a test basis.
A nominal rating describes the particle size the cartridge is designed to retain, without a stated test method. An absolute rating is tied to a defined efficiency under a defined test. The two cannot be compared across suppliers — yet both are written as "5 micron" on a quotation.
A purchase order that says "5 micron" and nothing else does not define a retention efficiency. It defines a conversation the supplier will have to finish for you, usually after the first element has blinded ahead of schedule.
The hidden cost of single-stage thinking
The second common error is expecting one element to do two jobs.
A fine cartridge asked to perform pre-filtration and polishing at once takes the full particle load. It blinds quickly, drives changeout frequency up, and — because each changeout carries labour, downtime and disposal — costs more per cubic metre than the cartridge price suggests.
Two stages usually outperform it. A coarse wound element in front takes the bulk of the solids cheaply and is changed often. A tighter element behind it holds the polishing duty for far longer. The first stage is designed to be unremarkable; the second is designed to last.
Size backwards, and include the worst week of the year
Pre-filters are usually sized forwards from a cartridge datasheet. They should be sized backwards from the downstream equipment.
Start with the tolerance the membrane, resin bed or exchanger actually needs, then verify against the raw water analysis — including the seasonal high, not the annual average. A pre-filter sized on an average sample blinds in the week turbidity peaks, and the failure will show up on the membrane, not on the pre-filter. By then, the pre-filter has already been replaced twice and the post-mortem is aimed at the wrong component.
What to send with the housing drawing
Six inputs turn a specification into a comparable quotation:
Flow rate, and whether it is continuous or batch.
Raw water analysis: turbidity, suspended solids, iron, and the seasonal high.
Downstream equipment and the tolerance it actually needs.
Housing dimensions and connection, or a drawing of the housing.
Operating temperature and pressure — at the housing, not at the pump.
Target changeout interval and annual volume, so service life can be priced in cubic metres rather than in cartridge units.
Add the rating basis — nominal or absolute — and the changeout differential pressure, and the quotation becomes a specification rather than an assumption.
The takeaway
The pre-filter is a small line item with an outsized effect on membrane life, resin performance and exchanger availability. Specify it early, size it backwards from the equipment it protects, and treat the rating as a test basis rather than a number.
Send the housing drawing with one raw water analysis, and the string wound filter cartridge can be specified against the train it sits in — rather than against last year's order.
[Send your housing drawing and water analysis for a pre-filter review →]
FAQ
1.Why is a wound cartridge used for pre-filtration instead of a pleated one?
Because the two hold dirt differently. A wound element traps particles through the depth of its wall, so it carries more solids before it blinds and suits water with a real particle load. A pleated element screens on a surface and suits cleaner streams or a final polishing duty where absolute retention matters more than dirt capacity.
2.What does nominal versus absolute rating mean in practice?
A nominal rating describes the particle size the cartridge is designed to retain, without a stated test method. An absolute rating is tied to a defined efficiency under a defined test. The two cannot be compared across suppliers, so a purchase order that says only "5 micron" leaves the supplier to decide what that means.
3.When should the element be changed?
At an agreed differential pressure, not at a fixed calendar date. A date-based schedule either wastes capacity or runs past the point where the element unloads trapped solids. The changeout pressure has to be set when the housing is commissioned, because that is the only time the baseline can be measured clean.
4.Is one fine cartridge better than two coarser ones?
Usually not. A single fine element takes the full particle load, blinds quickly and drives changeout frequency up. A coarse string wound filter in front takes the bulk of the solids cheaply, and a tighter element behind it holds the polishing duty for far longer.
