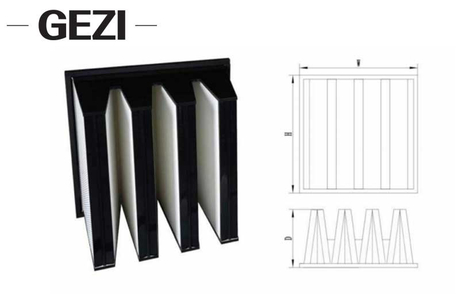

What Are The Benefits of The Medium Efficiency V-shaped Filter?

Benefits

Good sealing performance

Capable of maintaining high air volume

Large filtration area, large airflow, and high efficiency

Special V-shaped structure to reduce resistance

Installation flange available for easier installation

Application

In aviation, electronics, semiconductor, bio pharmaceutical, and hospital settings.

Used as a front-end filter for high-efficiency air filters.

Product Information

Filter media: Fiber glass / polypropylene

Frame: ABS / galvanized steel / aluminum
Sealant: Two component polyurethane adhesive

Gasket: EVA/ FPDM

Separator: Hot melt glue

Frame depth(mm): 292/ 400/435/330/440/600
Max.working temperature: 70℃

Max humidity: 100%

Testing condition: filter size :592x592x292-4V-F9 folds: 32 highth of fold:25 filter area :20m2

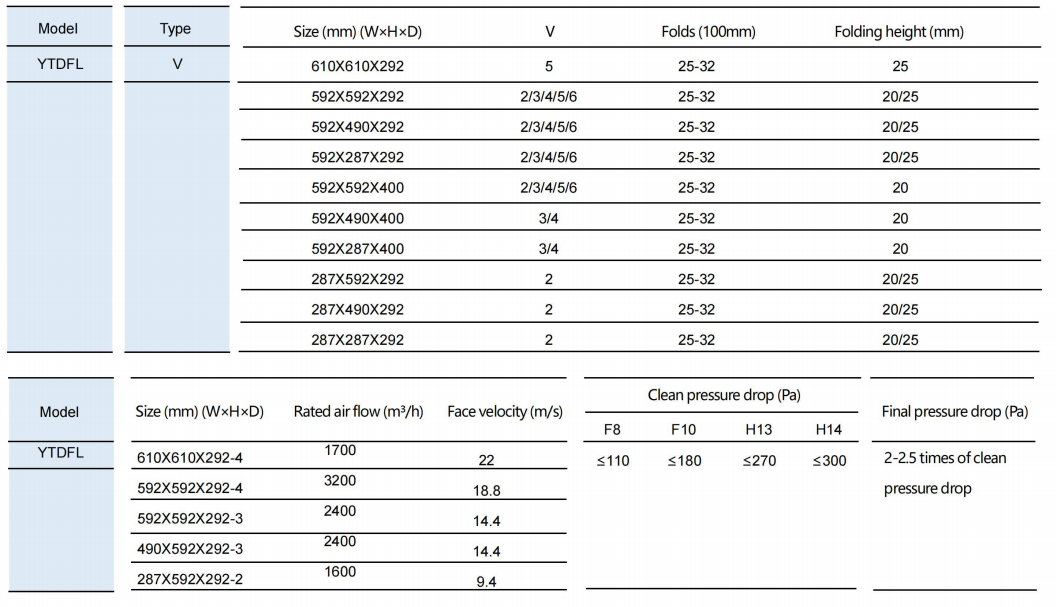

Technical Parameter
