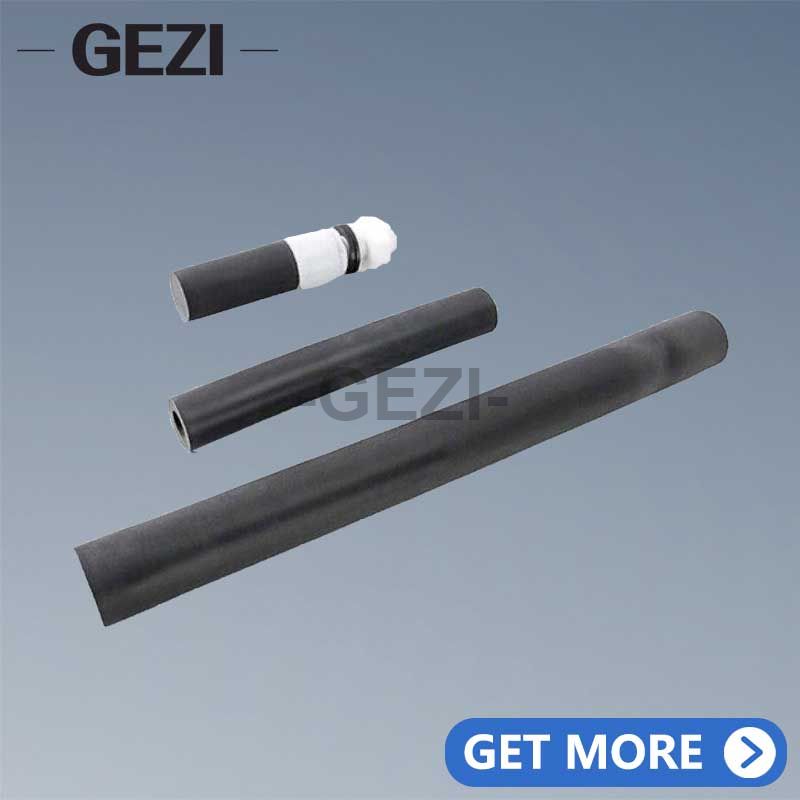

Specifications
| specifications | Specification range |
| OD | 20–200mm (commonly used 20/25/30/35/40/50/60mm), can be customized up to 250mm |
| length | Standard 5″, 10″, 20″, 30″, 40″; or 100–1500mm custom |
| End cap/connection method | DOE (flat end)/single/double end 222, 226 card type, also optional M36/M30/M25/M22/M14/M12 threaded end |
Filtration Accuracy & Pore Performance
Pore size range: 0.2, 0.3, 0.45, 1, 3, 5, 10, 20, 30, 40, 50, 100µm, etc., adjustable and customizable.
Accuracy parameters: For example, PA/PE can make high-precision micropores of 0.1µm, with uniform pores, gas filtered particles ≥ pore size particle size retention rate ≥99.98%.
Porosity: approximately 35–60%, high pore structure contributes to low resistance and high dust capacity.
Temperature and pressure difference adaptability
PE: Temperature resistance ≤80°C; PA version: up to ≤120°C.
Pressure resistance: Usually the rated differential pressure is about 30–40 psi (≈2.1–2.8bar).
High strength features: Strong polymer structure, excellent mechanical strength and durability of equipment.
Cleaning and regeneration characteristics
Recoilable cleaning: The support core structure is strong, the filter element is resistant to recoil, suitable for online or offline cleaning.
Multiple use: The material is stable, no adhesive, and the performance is maintained even after multiple cleanings.
Application scenarios
Water/gas-solid-liquid separation: including RO system pretreatment, gas purification, etc.
Beverage/pharmaceutical hygiene filtration: oral liquid, injection, beer, wine, etc.
Chemical/metal surface treatment industry: plating solution and catalyst suspension purification.
Electronic ultrapure water and photovoltaic industries: high requirements for front-end filtering gravel and microparticles.
Select suggestions
Determine the accuracy and medium: For example, microbial filtering or cleaner liquids, choose 0.1–1µm accuracy.
Flow specification determines the size: Choose 20/30/50/60mm OD and length according to the flow.
Temperature condition matching material: low temperature ≤80°C choose PE, high temperature ≤120°C use PA.
Interface compatibility: Confirm DOE, 222/226 or thread type according to the device filter bottle.
