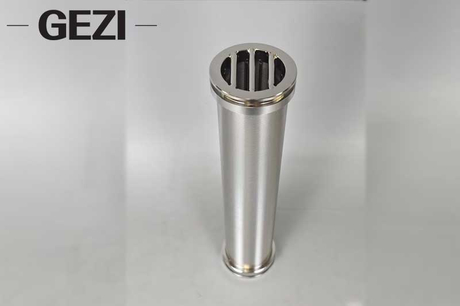

Functions of Stainless Steel Wedge Wire Screen Filter Cartridge

The main function of the stainless steel wedge wire screen filter cartridge is to filter and separate impurities and particles from fluids. Made of welded stainless steel wedge wire mesh, this filter cartridge features a filtration accuracy ranging from 25 to 800 microns, along with excellent corrosion resistance, high permeability and high filtration precision.

Stainless steel wedge wire screen filter cartridgesare widely used in multiple fields, including:

1. Petrochemical Industry: Catalytic reaction, hydrodesulfurization, styrene dehydrogenation, ammonia conversion and other processes.

2. Sewage Treatment & Water Supply Systems: Water source inlets, basement water supply, carbon and resin retention, demineralization softening, ion exchange and so on.

3. Mineral Processing: Screening, coal drying, starch filtration, pulp and plant fiber filtration, etc.

4. Paper Making & Food Processing: Beverage filtration and other applications.

Stainless steel wedge wire screen filter cartridges have the following characteristics:

1. Strong Corrosion Resistance: Constructed from stainless steel materials, it can operate stably for a long time in harsh environments.

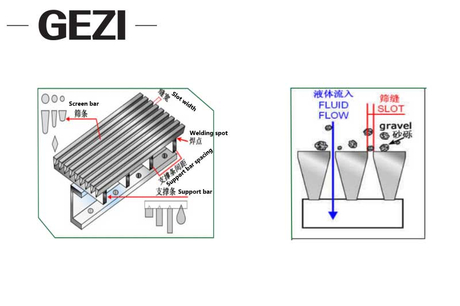

2. High Permeability & Filtration Precision: The wedge wire mesh structure design ensures a large open area and uniform pore distribution, enabling effective removal of fine particles and suspended substances.

3. Excellent Pressure Resistance: Treated with special processes, it can work stably under high-pressure conditions without being easily deformed or damaged.

4. Easy Cleaning & Maintenance: With a flat surface and simple structure, it is easy to clean and maintain, reducing operation costs.

5. Environmentally Friendly & Healthy: Stainless steel materials are non-toxic and odorless, complying with food-grade hygiene standards, making them suitable for drinking water treatment, food processing and other fields.
