Johnson Screen: A Comprehensive Guide To Industrial Filtration Solution

In the field of industrial filtration, choosing a reliable and efficient filtering material is crucial to ensuring smooth production processes, reducing maintenance costs, and improving product quality. Johnson Screen, a specialized mesh material widely used in industrial filtration, has become the preferred choice for many industries due to its unique structure, excellent performance, and strong customizability. As a leading industrial filtration solution, Johnson Screen is widely recognized for its precision and durability. This guide will detail everything you need to know about Johnson Screen, including its structure, applications, advantages, materials, and customization options, helping you understand why Johnson Screen stands out in industrial filtration.

What is Johnson Screen?

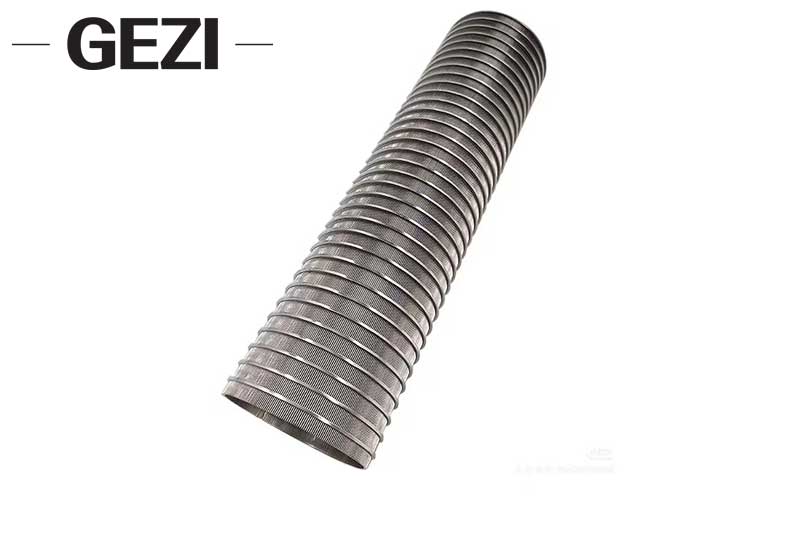

Johnson Screen, also known as Wedge Wire Screen, is a special mesh material made of metal wires, mainly divided into two types: Screen Tube and Screen Plate. Invented in 1904 by Edward E. Johnson, who developed the world’s first continuous slot wire wrapped screen for water wells, Johnson Screen has a history of over a century and has evolved into a leading filtration solution in various industrial fields worldwide. Renowned for its precision structure, durability, and high filtration efficiency, Johnson Screen is an indispensable component in solid-liquid and solid-gas separation processes, making Johnson Screen the top choice for industrial filtration.

Structural Features of Johnson Screen

The standard welding structure of Johnson Screen adopts resistance welding to connect winding wires and support ribs in a continuous rotation manner, forming a continuous opening wedge mesh—one of the key structural features that make Johnson Screen superior to other filtration materials. The unique V-shaped (wedge-shaped) wire profile and continuous slot design of Johnson Screen are the core of its structural advantages—this design not only ensures structural stability but also maximizes the open area for fluid flow, enhancing the overall efficiency of Johnson Screen.

Thanks to its flexible structure, Johnson Screen can be made into various shapes according to actual application needs, including cylindrical (screen tube), flat plate (screen plate), arc, and other custom shapes. This flexibility of Johnson Screenallows it to adapt to different equipment sizes and working environments, from small-scale filters to large industrial filtration systems, making Johnson Screen a versatile choice for diverse filtration needs.

Wide Applications of Johnson Screen

With its unique structure and excellent performance, Johnson Screen is widely used in multiple industries and specific filtration scenarios, covering almost all fields that require precision filtration and separation. As a versatile industrial filtration material, Johnson Screen can adapt to various harsh working environments, making it an ideal choice for many enterprises. Below are the main application areas of Johnson Screen:

Key Industry Applications

• Petrochemical Industry: Used in petrochemical filtration equipment for filtering catalysts, corrosive fluids, and impurities in oil and gas processing, ensuring the purity and safety of petrochemical products.

• Coal Washing Plants: Applied in coal preparation processes to separate coal and impurities, improve coal quality, and reduce environmental pollution from waste water.

• Water Well Drilling: As a core component of well screens, it prevents aquifer clogging while maximizing water yield, widely used in groundwater extraction and water well construction.

• Wastewater Treatment: Used in various wastewater treatment systems to filter solid particles, organic matter, and other impurities, helping to purify wastewater and meet environmental discharge standards.

• Food Processing Industry: Applied in food and beverage processing for precision filtration, ensuring food safety and product quality, such as filtering impurities in fruit juice, dairy products, and edible oil.

Specific Product Applications

• High-Speed Gravity Sand Filters: Used as a filter medium to remove sand and suspended particles in water, improving water clarity.

• Activated Carbon Filter Tanks: Cooperates with activated carbon to filter organic matter, odors, and harmful substances in water, enhancing water quality.

• Desalination Equipment/Soft Water Filters: Applied in desalination and water softening processes to remove salts and hardness ions, meeting industrial and domestic water needs.

• Ion Exchange Columns: Used as a support structure for ion exchange resins, ensuring uniform fluid distribution and improving ion exchange efficiency.

• Pharmaceutical Resin Treatment: Used in pharmaceutical production to filter and purify resin, ensuring the purity of pharmaceutical products.

• Drinking Water Equipment: Applied in drinking water purification systems to remove impurities and harmful substances, providing safe drinking water.

Core Advantages of Johnson Screen

Compared with traditional filtration materials (such as ordinary wire mesh, punched plates), Johnson Screen has obvious advantages in efficiency, durability, and usability—these advantages are the key reasons why Johnson Screen is widely used in industrial fields. For enterprises pursuing high efficiency and low maintenance costs, Johnson Screen is undoubtedly the most cost-effective filtration solution:

1. Larger Open Area: The continuous wedge-shaped slot design provides a larger open area than traditional filters, which can significantly increase the efficiency of water flow or air flow, reduce energy consumption, and improve filtration throughput.

2. Anti-Clogging Performance: The unique V-shaped cross-section structure allows particles to slide down easily, avoiding clogging, ensuring smooth circulation, and reducing the frequency of cleaning and maintenance.

3. Sturdy Structure & Precise Slot Size: The resistance welding process ensures a firm connection between winding wires and support ribs, making the overall structure sturdy and resistant to pressure and wear. At the same time, the slot size is precise (ranging from 20μm to 3000μm), ensuring stable and reliable filtration accuracy.

4. Easy Backwashing & Long Service Life: It can be easily cleaned by backwashing, chemical cleaning, or high-pressure cleaning, reducing downtime and maintenance costs. With excellent corrosion resistance and wear resistance, its service life is much longer than traditional filtration materials, and the comprehensive use cost is lower.

5. High Temperature Resistance: It can withstand high temperatures above 100°C (up to 600°C depending on the alloy), suitable for high-temperature filtration scenarios in industrial production.

6. Low Pressure Loss: The reasonable structural design minimizes pressure loss during fluid flow, ensuring the stability of the entire filtration system and reducing the load on related equipment.

Materials & Customization Options

Johnson Screen can be fully customized according to customer needs to adapt to different working environments and filtration requirements. Whether it is diameter, slot size, or material, Johnson Screen can be tailored to meet specific application scenarios, which is another important advantage that makes Johnson Screen stand out from other filtration materials.

Material Options

The material of Johnson Screen is selected according to the corrosiveness, temperature, and pressure of the filtered medium—choosing the right material is key to ensuring the service life and performance of Johnson Screen. Common materials for Johnson Screen include:

• Stainless Steel: SS304, 316L, 321, 904L, etc., which have good corrosion resistance and are suitable for most general industrial filtration scenarios.

• Duplex Steel: Duplex Steel 2205, Super Duplex Steel 2507, which have stronger corrosion resistance and mechanical strength, suitable for harsh environments such as high corrosion and high pressure.

• High-Performance Alloys: Hastelloy C, Titanium Alloy TA2, etc., which are suitable for extreme working environments such as strong acid, strong alkali, and high temperature, ensuring stable performance in harsh conditions.

Customization Services

We provide comprehensive customization services to meet your specific needs:

• Diameter Range: Customizable according to equipment size, from small-diameter screen tubes to large-diameter filtration cylinders.

• Slot Range: Precise customization from 20μm to 3000μm, meeting different filtration precision requirements.

• Shape Customization: Cylinder, flat plate, arc, or other special shapes, adapting to different installation spaces and equipment structures.

• Surface Treatment: Acid pickling passivation, internal and external polishing, etc., to improve corrosion resistance and service life.

Why Choose Johnson Screen for Industrial Filtration?

In the competitive industrial filtration market, Johnson Screen stands out with its efficient, durable, and customizable characteristics. Johnson Screen not only solves the pain points of traditional filtration materials such as easy clogging, low efficiency, and short service life but also can be tailored to different industry needs, providing a one-stop filtration solution for enterprises. Choosing Johnson Screen means choosing stability, efficiency, and cost savings.

Whether you are in the petrochemical, coal washing, wastewater treatment, food processing, or pharmaceutical industry, Johnson Screen can bring you stable filtration performance, reduce maintenance costs, and improve production efficiency. With over a century of technical accumulation and global application experience, Johnson Screen has become a trusted industrial filtration partner for enterprises around the world, and choosing Johnson Screen is a wise investment for long-term industrial filtration needs.

If you need to customize Johnson Screen according to your specific application scenarios, please contact us, and our professional team will provide you with high-quality products and personalized solutions.
