Benefits
Save space
Folding to increase filter area
Large hold dust capacity
long using life
Not easily deformed
Application
The pleated coarse efficiency filter is widely used in various ventilation systems for initial filtration, which can extend the service life of the back-end filter.
Product Information
Filter media: Chemical fiber non-woven fabric
Seal: White latex or universal adhesive
Composite mesh material: stainless steel / galvanized mesh
Frame: Aluminum alloy / cardboard / stainless steel
Frame thickness (mm): 21/ 25/ 46/ 50/ 69/ 80/ 90/ 96
Max.working temperature: 70℃
max.humidity: 100%
Filter Size: 592x592x46

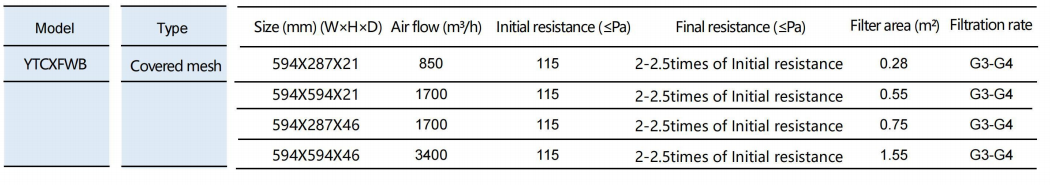

Technical parameter
