What Are The Benefits And Applications of This Medium Efficiency Filter?

Benefits

Large dust capacity

High universality

High moisture resistance

Application

Mainly used for central air conditioning and integrated air supply systems. Can serve as the main filter for air conditioning systems to protect the HEPA filter and the system itself. In situations where the cleanliness requirements for air purification are low, the air passing through the medium efficiency filter can be directly delivered to the working area.

Product Information

Filter media: Glass fIber/ chemical fiber

Frame: Galvanized steel/stainless steel / aluminum alloy

Sealant: Two component polyurethane adhesive

Gasket: Polyurethane foam gasket / FVAVFPDM

Separator: Paper/ aluminum foil

Frame depth(mm): 96/12011501220 12921305

Max.working temperature: Paper: 50℃, aluminum foil100℃

Max humidity: 100%

Testing condition: filter size :630 x630x220-F9 (fiber glass)face velocity:0.5m/s Initial resistance: 62Pa

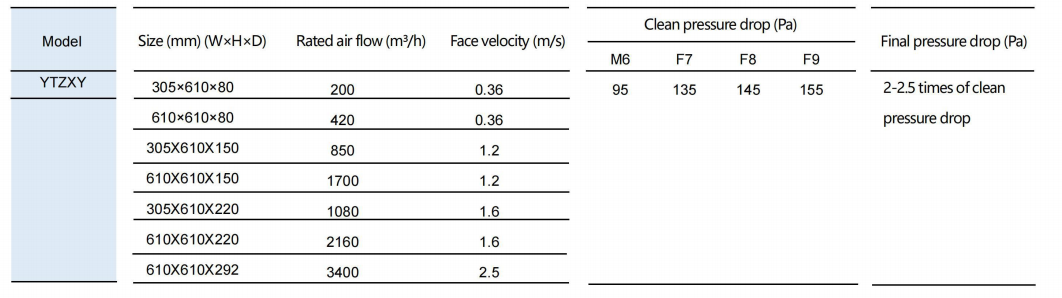

Technical Parameter
