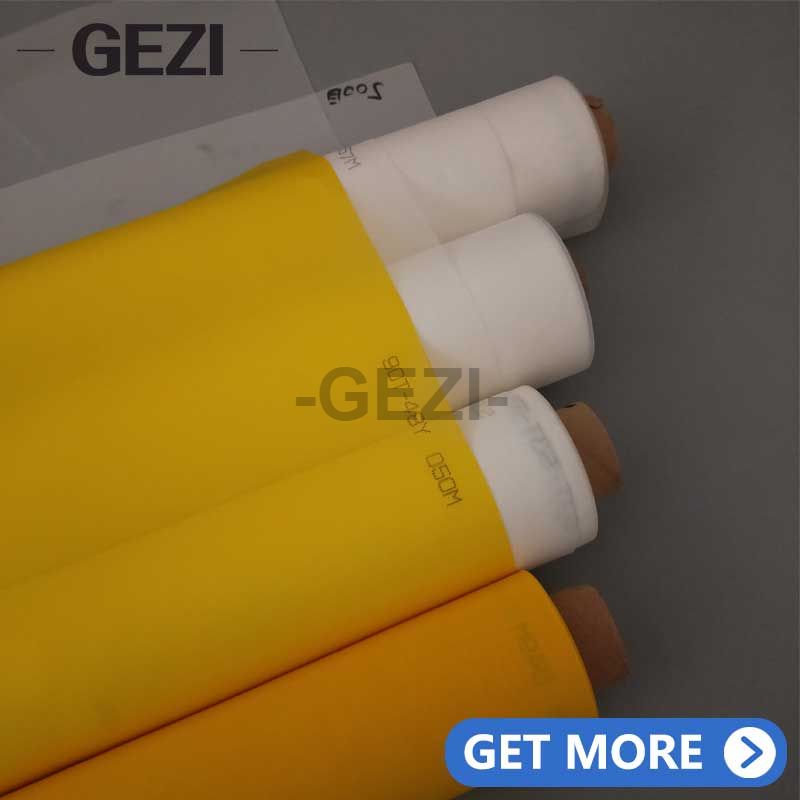

Screen Printing Mesh

Screen printing mesh is a high-precision woven fabric designed for screen printing applications. Made from durable materials such as polyester, nylon, or stainless steel, it ensures excellent ink transfer, durability, and consistent print quality. It is widely used in textile, graphic, ceramic, electronic, and industrial printing.

Availability:



Inquire

Product Description

Key Features

Material Options: Polyester (most common), nylon (flexible), stainless steel (high durability).

Mesh Count Range: From low (40-120 threads/inch for thick inks) to high (200-400+ threads/inch for fine details).

Weave Types: Plain weave for standard prints; twill weave for specialty applications.

High Tensile Strength: Resists stretching and deformation for long-lasting use.

Precision Coating: Some meshes include pre-coated emulsions for easier screen preparation.

Applications

Textile Printing: T-shirts, apparel, fabrics.

Graphic Printing: Posters, signage, artwork.

Industrial/Electronic Printing: Circuit boards, solar panels.

Ceramic/Glass Printing: Decorative designs.

Advantages

✔ Excellent ink flow & opacity control.

✔ Durable and resistant to chemicals/abrasion.

✔ Suitable for manual & automated printing.

Available Sizes & Customization: Standard rolls or pre-stretched frames; customizable mesh counts and thread diameters.

Ideal For: Print shops, manufacturers, and DIY enthusiasts seeking professional-grade results.

Specifications

Mono-filament Polyester Printing Mesh
Mest count		Thread diameter	Mesh opening	Open surface	Fabric thickness	Weight
Mest count		Thread diameter	Mesh opening	Open surface	Fabric thickness	Weight
mesh/cm	mesh/inch	micron	micron	%	micron	g/m2
2T	5	600	4400	77.5	1170	156
3T	8	600	2750	67.2	1160	234
4T	10	500	2000	64	950	217
5T	13	450	1550	60	850	2259
6T	15	400	1270	58	760	246
7T	18	350	1080	57	660	220
8T	20	350	900	52	660	251
9T	23	350	760	47	670	282
10S	25	200	800	64	360	87
10	25	250	750	56	450	160
10T	25	300	700	49	570	231
12S	30	120	720	74	215	44
12	30	150	680	67	260	69
12	30	250	580	48	460	192
12T	30	300	530	40	580	277
14S	36	200	515	52	360	143
15S	38	200	470	50	380	154
15T	38	250	420	40	470	240
16S	41	100	525	92	180	36
16	41	150	475	58	258	93
16	41	180	445	51	370	112
16T	41	200	425	46	380	164
18S	46	150	405	53	260	104
18T	46	180	375	46	330	150
19T	48	150	375	51	260	110
20S	50	80	420	71	140	33
20S	50	100	400	64	180	51
20T	50	150	350	49	260	115
21T	53	150	325	47	270	121
24S	61	120	340	67	220	88
24T	61	150	270	42	280	138
27T	68	120	250	46	230	100
28S	71	80	280	62	150	46
28T	71	120	240	45	230	103
29T	74	120	225	43	230	107
30T	76	120	215	42	230	111
32S	80	80	230	54	150	52
32T	80	100	210	45	180	82
32T	80	120	193	38	232	116
34S	86	80	215	53	150	56
34T	86	100	195	44	180	87
36T	91	100	180	42	180	92
39S	99	55	200	61	95	30
39	99	64	190	55	115	40
39	99	80	176	47	156	65
40T	102	100	150	36	190	103
43S	110	55	178	58	95	33
43	110	71	161	48	128	54
43T	110	80	150	42	155	71
47S	120	48	165	60	85	27
47	120	55	160	57	96	36
47	120	64	150	50	120	48
47T	120	71	140	43	130	59
53S	135	45	144	55	76	27
53	135	55	135	51	97	40
53T	135	64	125	44	122	54
53HD	135	71	117	39	132	67
59	150	55	115	46	99	45
59T	150	64	105	38	123	61
64S	160	45	111	51	82	33
64	160	55	100	41	100	48
64T	160	64	90	33	125	66
72S	180	45	95	47	78	37
72	180	48	91	43	85	40
72T	180	55	85	38	102	55
77T	195	55	75	33	105	58
80S	200	45	80	41	80	41
80T	200	48	85	44	86	44
90S	230	39	70	40	68	34
90	230	45	68	34	80	46
90T	230	48	65	33	82	49
100T	250	39	60	36	69	38
110	280	34	56	38	62	34
110T	280	39	52	33	70	42
120S	300	31	52	40	48	32
120	300	34	48	33	63	37
120T	300	39	44	28	72	46
130S	330	31	47	37	50	35
130T	330	34	42	30	58	40
140S	350	31	43	34	50	37
140T	350	34	36	25	62	43
150S	380	31	37	30	50	40
150T	380	34	32	24	56	43
165S	420	27	33	31	40	26
165	420	31	32	23	50	36
165T	420	34	25	16	66	49
180	457	27	24	18	43	33
180T	457	31	23	17	56	40
200	508	27	23	25	45	32
200T	508	31	18	13	60	48

Monofilament Polyamide Printing Mesh
Mest count		Thread diameter	Mesh opening	Open surface	Fabric thickness	Weight
Mest count		Thread diameter	Mesh opening	Open surface	Fabric thickness	Weight
mesh/cm	mesh/inch	micron	micron	%	micron	g/m2
2.3	6	1000	3233	58.3	1900	412
3.1	8	900	2300	51.3	1700	450
4	10	550	1950	61	950	262
5	12	500	1500	56	850	271
6	16	400	1267	58	780	208
7	18	350	1079	57	675	186
8	20	350	900	52	685	212
9	24	250	860	60	455	145
10	25	300	700	49	576	195
12	30	250	583	49	470	162
12	30	300	533	41	585	234
14	35	300	414	34	595	273
16	40	200	425	46	370	139
16	40	250	375	36	485	217
20	50	150	350	49	375	98
20	50	200	300	36	385	173
24	60	150	267	41	285	117
28	70	120	237	44	215	87
30	76	120	213	41	225	94
32	80	100	213	46	165	69
36	90	100	178	41	178	78
40	100	100	150	36	190	87
43	110	80	152	43	135	60
48	120	80	130	38	145	62
56	140	60	120	44	85	44
59	150	60	110	42	98	46
64	160	60	100	37	105	50
72	180	50	90	41	82	39
80	200	50	75	36	90	43
100	250	42	60	36	65	35
120	305	30	55	42	52	20
120	305	35	45	29	60	28
120	305	38	42	25	67	35
120	305	42	42	25	75	42
130	330	30	47	37	55	22
130	330	35	42	30	62	30
130	330	38	40	26	74	36
140	355	30	38	28	53	25
140	355	35	37	26	65	33
140	355	38	32	20	68	36
145	368	38	30	19	64	40
150	380	30	34	26	50	26
150	380	38	31	21	68	40
165	420	30	30	25	59	28
165	420	38	25	15	75	42
180	460	30	25	21	60	31
200	508	30	20	16	65	34

Polyamide Double-filament Screen Mesh
Mest count		Thread diameter	Mesh opening	Open surface	Fabric thickness	Weight
Mest count		Thread diameter	Mesh opening	Open surface	Fabric thickness	Weight
mesh/cm	mesh/inch	micron	micron	%	micron	g/m2
30	76	60x2	121	40	115	45
33	84	60x2	181	36	115	50
36	90	60x2	156	32	115	54
39	100	60x2	135	28	120	58
42	107	60x2	116	24	120	62
46	120	50x2	118	29	105	48
50	127	50x2	101	25	105	52
54	137	40x2	99	29	85	36
58	147	40x2	86	25	87	38.5
62	157	40x2	75	22	88	41

Different screen printing purpose require different mesh type

21T, 24T：Beach towels, Pennant inks,Giltner inks, Thicker inks.

34T,32,36T, 39T, 43T：Textile inks, Opaque inks textile, T-shirts.

49T, 48T,54T, 55T：Textile inks, Finer textile design, Water based inks.

62T, 64T,68T,72T：Enamel inks, Very fine textile ink or course plastisol ink printing.

77T：Paper & Board inks, & textile.

90T,100T：Vinyl inks, Plastic inks, Plastisol inks,Solvent based).

110T, 120T, 140T：Halftone printing, Paper & Board Vinyl Plastic, Plastisol etc.

150T,165T：U.V. printing, or very fine halftone work, solvent inks.
