The stainless steel wires include grades such as AISI 201, 202, 301, 302, 304, 304L, 321, 316 and 316L. Other available materials cover pure nickel wire, pure titanium wire, Monel alloy wire, galvanized wire and drawn wire. These wires are the core components applied in projects like stainless steel/cotton thread or plastic mesh mist eliminators, oil-gas separators, dust removal systems, environmental protection facilities, engine silencers and mechanical shock absorbers. Moreover, they are widely used in the automotive and electronics industries.

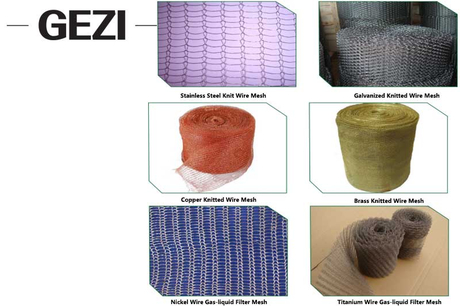

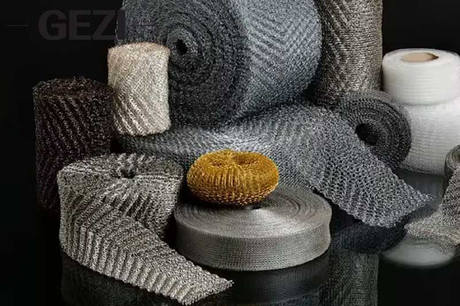

Vapor-liquid filter mesh, also known as gas-liquid mesh, mist breaking mesh, filter mesh or braided mesh, is essentially a wire mesh woven with improved techniques based on traditional sweater knitting methods. The wires used for weaving are generally round wires or flattened wires with a diameter ranging from φ0.08 to φ0.50 mm. Wires with a diameter ≤ φ0.30 mm can be woven in multi-strand form, which can also be a composite weave of metal wires and fiber wires. This product is resistant to corrosion by various weak corrosive media such as air, steam and water.
Product Materials
Customized Metal Materials: 321, 316L, titanium, F46, NS-80, nickel wire, titanium wire and their alloys, etc.
Standard Metal Materials: Q235B, 201, 304, 304L, 316, 316L, 2205, etc.
Standard Plastic Materials: PP (Polypropylene), PTFE (Polytetrafluoroethylene), hybrid weave of glass fiber and metal wire, hybrid weave of glass fiber and plastic wire, etc.
Surface Types of Stainless Steel Vapor-Liquid Filter Mesh
There are two surface types: flat mesh surface and corrugated mesh surface with pressed waves, where the depth and width of the corrugations are available in different specifications.
Product Advantages
Cost-effective with high economic efficiency.
High strength, applicable to ventilation systems.
Excellent filtration performance.
Safe, sturdy and long service life.
Product Applications
Manufacturing filter mesh pads for wire mesh mist eliminators.
Serving as filter screens for devices such as gas-liquid separators, gas-water separators and oil-water separators.
Producing various filter elements for engines of automobiles, tractors and other vehicles.
Being used as sealing, shock absorption, noise reduction and exhaust purification components in auto parts.
Manufacturing shielding devices for anti-electromagnetic interference in electronic and electrical products.
