Specifications

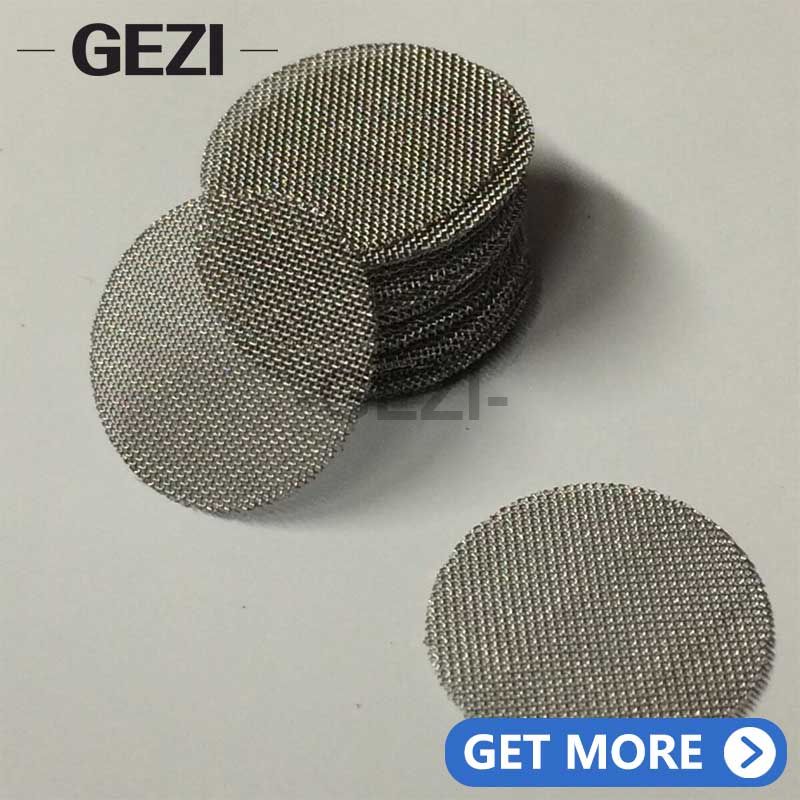

1.Material structure: sintered from SUS304 / 316 / 316L stainless steel powder or multi-layer wire mesh, without adhesive, uniform structure, stable micropores, support single-layer to multi-layer design.
2.Pore and filtration accuracy
Pore size/accuracy: 0.2–300µm Optional (common accuracy 0.5 / 1 / 2 / 5 / 10 / 20 / 40 / 70 / 100µm).
Porosity: about 30–50%.
Filtration efficiency: up to ≥98–99%, stable and reliable.
3.Temperature and pressure resistance
Temperature range: -200°C to 500–800°C.
Pressure tolerance: up to 5MPa (50bar), some design supports 30MPa.
4.Physical dimensions
Outer diameter: customizable 5mm–2000mm; thickness: 1–10mm.
Provides a variety of shapes such as round, square, rectangle, ring, etc.
5.Performance Features
High permeability and large dust capacity; strong structure, cleanable and reusable; high temperature resistance, corrosion resistance, high mechanical strength; stable filtration efficiency and pore diameter.
Application scenarios
1.Gas-liquid high-temperature systems: steam, hot oil, natural gas, etc.
2.Liquid filtration: drinking water, chemical industry, medicine, solvents, etc.
3.Industrial, environmental and track equipment sound silence and breathability, precision filter devices.
